Quick Start

Map Elements¶

The three map element features (north arrows, scale bars, and inset maps) share a common import structure, where any of the following can work (example shown for north arrows):

from matplotlib_map_utils import NorthArrow, north_arrow
from matplotlib_map_utils.core import NorthArrow, north_arrow # also valid
from matplotlib_map_utils.core.north_arrow import NorthArrow, north_arrow # also valid

There is no difference in where you import from, so for brevity's sake the documentation uses the first, shortest example.

Similarly, all three of the map elements support both a functional and object-oriented approach, like:

# Setting up a plot
fig, ax = matplotlib.pyplot.subplots(1,1, figsize=(5,5), dpi=150)

# Adding a north arrow to the upper-right corner of the axis, without any rotation
# (see Rotation under Formatting Components for details)
north_arrow(ax=ax, location="upper right", rotation={"degrees":0})

# Setting up a plot
fig, ax = matplotlib.pyplot.subplots(1,1, figsize=(5,5), dpi=150)

# Creating a north arrow for the upper-right corner of the axis, without any rotation
# (see Rotation under Formatting Components for details)
na = NorthArrow(location="upper right", rotation={"degrees":0})

# Adding the artist to the plot
ax.add_artist(na)

The primary difference between the functional and object-oriented approaches is that the latter allows from the creation of reusable elements - useful if you are making many plots at once; otherwise, all customisation options are the same. Again, for brevity's sake, only the functional approaches will be demonstrated in this guide, but the object-based approach will be shown in the detailed guides specific to each element.

Generally, each map element should be added as the final step before rendering the plot: most elements rely on aspects of the plot such as the axis limits and figure size having been appropriately calculated in order to format themselves properly.

# Setting up a plot
# The figsize and DPI here should NOT be changed after adding elements
fig, ax = matplotlib.pyplot.subplots(1,1, figsize=(5,5), dpi=150)

# Here, you would add your geodata, change your limits, and so on
gdf.plot(...)
ax.set_xlim(...)
ax.set_ylim(...)

# Only after all of this was done would you add each of your elements
north_arrow(ax=ax, ...)
scale_bar(ax=ax, ...)

North Arrows¶

A basic north arrow can be generated by providing two pieces of information

• The location of the plot where you want the north arrow to appear
• The rotation you want the north arrow to have; here a manual rotation of 0 degrees is provided

from matplotlib_map_utils import north_arrow

# Setting up a plot
fig, ax = matplotlib.pyplot.subplots(1,1, figsize=(5,5), dpi=150)

# Adding a north arrow to the upper-right corner of the axis, without any rotation
# (see Rotation, below, for details)
north_arrow(ax=ax, location="upper right", rotation={"degrees":0})

Customization¶

Most aspects of the north arrow can be customised, or turned off entirely:

north_arrow(
    ax,
    location = "upper right", # accepts a valid string from the list of locations
    scale = 0.5, # accepts a valid positive float or integer
    # each of the follow accepts arguments from a customised style dictionary
    base = {"facecolor":"green"},
    fancy = False,
    label = {"text":"North"},
    shadow = {"alpha":0.8},
    pack = {"sep":6},
    aob = {"pad":2},
    rotation = {"degrees": 35}
)

This will create an output like the following:

Refer to the North Arrows guide for details on how to customise each facet of the north arrow.

Rotation¶

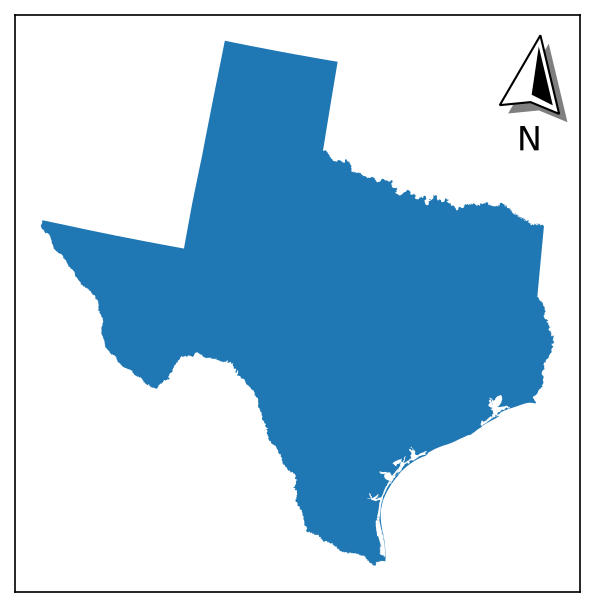

The north arrow object is also capable of pointing towards "true north", given a CRS and reference point:

Refer to this subheader of the North Arrows guide for details on how to do so.

Scale Bars¶

A basic scale bar can be generated by providing three pieces of information

• The location of the plot where you want the scale bar to appear
• The style of scale bar (either boxes or ticks)
• Information that tells the scale bar its length (on the plot) and its units (based on what is being plotted)
  • This can get somewhat complicated - see the Specifying Length section below for details

from matplotlib_map_utils import scale_bar

# Setting up a plot
fig, ax = matplotlib.pyplot.subplots(1,1, figsize=(5,5), dpi=150)

# Adding a scale bar to the upper-right corner of the axis,
# in the same projection as whatever geodata you plotted
scale_bar(ax=ax, location="upper right", style="boxes", bar={"projection":3857})

Customization¶

Most aspects of the scale bar can be customised, or turned off entirely:

scale_bar(
    ax,
    location = "upper right", # accepts a valid string from the list of locations
    style = "boxes", # accepts a valid positive float or integer
    # each of the follow accepts arguments from a customised style dictionary
    bar = {"unit":"mi", "length":2}, # converting the units to miles, and changing the length of the bar (in inches)
    labels = {"style":"major", "loc":"below"}, # placing a label on each major division, and moving them below the bar
    units = {"loc":"text"}, # changing the location of the units text to the major division labels
    text = {"fontfamily":"monospace"}, # changing the font family of all the text to monospace
)

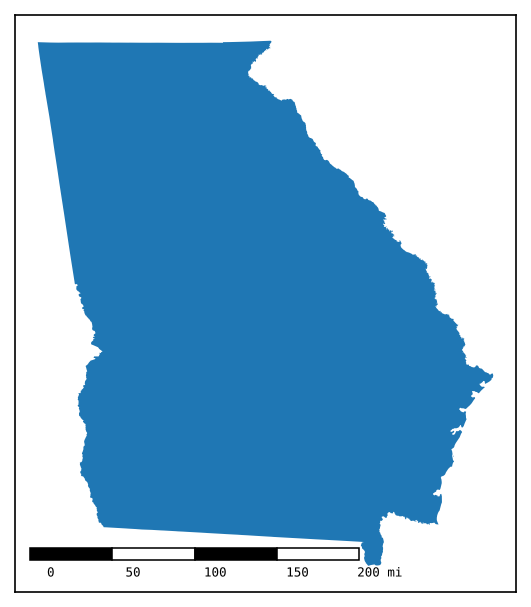

This will create an output like the following:

Refer to the Scale Bars guide for details on how to customise each facet of the scale bar.

Specifying Length¶

Refer to this subheader of the Scale Bars guide for further details on how to specify the length of the scale bar, including detail on using custom units.

Inset Maps¶

A basic inset map can be generated by providing three pieces of information

• The location of the plot where you want the inset map to appear
• The imsize of the inset map, in inches (providing a single number creates a square plot)

from matplotlib_map_utils import inset_map

# Setting up a plot
fig, ax = matplotlib.pyplot.subplots(1,1, figsize=(5,5), dpi=150)

# Adding an inset map to the axis
# Here, we also pass some additional kwargs argument that would be accepted by a "normal" axis
iax = inset_map(ax=ax, location="upper right", imsize=0.75, pad=0, xticks=[], yticks=[])
# Note that we have a returned object, which acts as a separate axis
# Meaning you can plot further objects to it, ex. gdf.plot(ax=iax)

Refer to the Inset Maps guide for details on how to customise each facet of the inset map.

Extent and Detail Indicators¶

Inset maps can be paired with either an extent or detail indicator, to provide additional geographic context to the inset map:

indicate_extent(inset_axis, parent_axis, inset_crs, parent_crs, ...)
indicate_detail(parent_axis, inset_axis, parent_crs, inset_crs, ...)

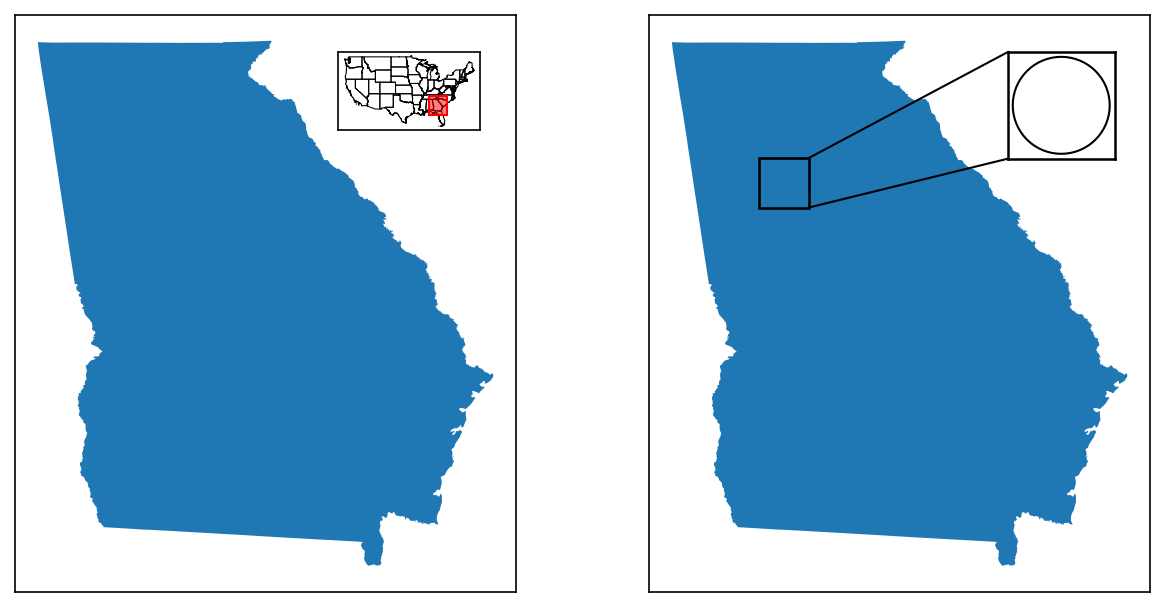

These will create an output like the following (extent indicator on the left, detail indicator on the right):

Refer to the Indicators section of the Inset Maps guide for further details.

Utilities¶

As of v2.1.0, there is only one utility available: USA, an object to help quickly filter for subsets of US states and territories. This utility class is still in beta, and might change.

USA¶

The USA class was built to provide an easy method of generating lists of FIPS codes for certain subsets of US states and territories (useful, for example, when querying or filtering a dataframe), and was expanded to then provide a general capacity of enriching data related to US states and territories (for example, adding in regional/subregional groupings based on state names).

A small example showcasing how to import the utility class and use it:

from matplotlib_map_utils.utils import USA

# Loading the object
usa = USA()

# Getting a list of FIPS codes for US States (not territories)
usa.filter(states=True, to_return="fips")

# Getting a list of State Names for states in the South and Midwest regions
usa.filter(region=["South","Midwest"], to_return="name")

Refer to the USA section of the Utilities guide for details on how to use this class, including with pandas.apply().
